The choice for Commercial Vessels is 16 and 32 amp, 3 phase.
The functionality allows for the added benefit of being able to switch the polarity in case you urgently need power while waiting for an electrician. You can also buy the components on a din rail separate from the enclosure giving you flexibility in installation options.
Contact us for Pricing and to see which one is better suited to your needs.
Available in 16 amp and 32 amp. You can also buy the components on a din rail separate from the enclosure, giving you flexibility in installation options.
Contact us for Pricing and to see which one is better suited to your needs.

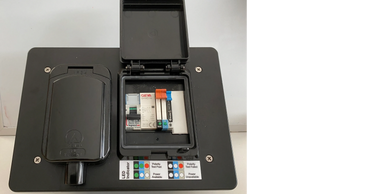

Very compact and sleek. Perfect enclosure for the components and lead to remain dry while at the camp site. Just insert your lead and off your go!
Contact us for Pricing
Single Phase Modules
Voltage
230/240 Volts (50 or 60 Hz)
110/120 Volts (50 or 60 Hz)
Amperage
16A
32A
Amperage (Testing Circuit)
Total current (during Polarity Test) – 0.5mA
Duration of Polarity Test 3 to 5 seconds
Total current (after Polarity Test) – 0.3mA
Enclosures
IP Rating and Dimensions (L x H x D)
Recreational Boats
16A & 32A Modules: IP66; 159mm x 119mm x 90mm
Commercials Vessels
16A & 32A Modules (without Reverse Polarity Switch): IP66; 159mm x 119mm x 90mm
16A & 32A Modules (with Reverse Polarity Switch): IP66; 170mm x 215mm x 110mm
Recreational Vehicles
16A & 32A Modules (without power inlet): IP66; 159mm x 119mm x 90mm
16A & 32A Modules (with power inlet): Power Inlet - IP35; MCB – IP55; 250mm x 180mm x 110mm
Three Phase Modules
32A Modules (without Reverse Polarity Switch): IP66; 210mm x 155mm x 90mm
32A Modules (with Reverse Polarity Switch): IP66; 170mm x 270mm x 110mm
Amperages over 32A made to order.
ESHORE Warranty 2 Years
Our Return and Refund policy (Warranty) can be downloaded below.
To claim under this ACL consumer warranty: Please submit in writing, by email or letter,
● Your contact details: phone (fixed or mobile), email address if applicable
● The location of the product and installation.
● Product model
● Product serial number
● Date of purchase
● Copy of your Tax Invoice for the goods
● Date of installation or date of commissioning
● Installed by – Installer’s name and phone (fixed or mobile) number or email address
● Date of failure
● Brief explanation of what you have done to get the product working again: i.e. contacted selling dealer or installer?
● Any other information that you feel is relevant to your installation or the product failure.
